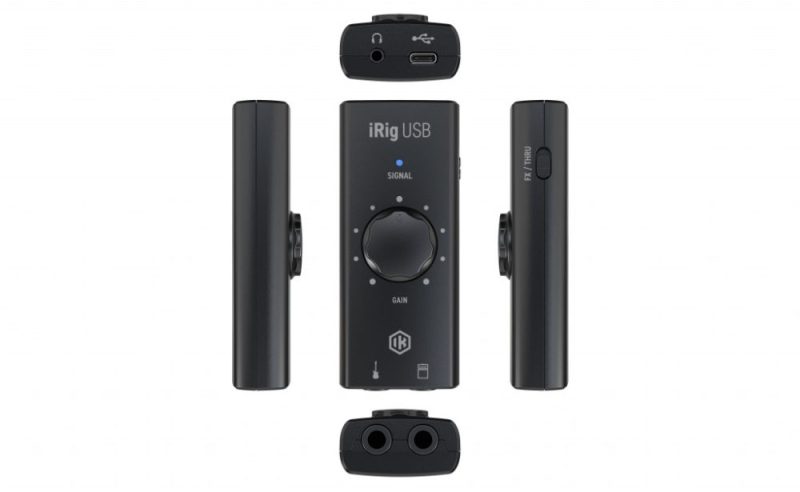

IK Multimedia iRig USB

• AD and DA resolution: 24-bit
• Sampling rate: 44.1 kHz and 48 kHz
• Host connection: USB Type-C socket

Instrument Input

• Input impedance: 500 kOhms
• Maximum input level: +13.5 dBu
• Frequency response: From 20 Hz to 20 kHz within 0.5 dB (48 kHz sample rate)
• Dynamic range: 90 dB(A)

Amp Output

• Configuration: Unbalanced
• Output impedance: 3.3 kOhms
• Frequency response: From 10 Hz to 20 kHz within 1 dB (48 kHz sample rate)
• Dynamic range: 97 dB(A)

Headphone Output

• Output impedance: 22 Ohms
• Maximum output level: approx 6mW into 50 Ohms load
• Frequency response: From 10 Hz to 20kHz within 1 dB (48 kHz sample rate)
• Dynamic range: 94 dB(A)

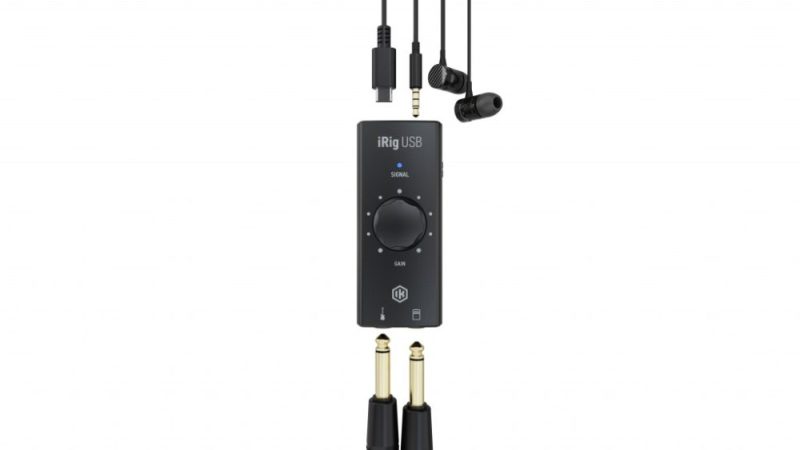

Package includes

• iRig USB interface
• USB-C to USB-C cable (60 cm/23.62″)

Dimensions

• Size: 99 mm/3.9″ x 42 mm/1.65″ x 25 mm/0.98″
• Weight: 54 g/1.9 oz.

Computers

Mac®: macOS 10.6 or later. One free USB port.

Windows®: Windows 10 or later. One free USB port. For low latency, the IK Multimedia’s iRig audio driver must be installed. Download the iRig ASIO driver here.

iOS Devices

Compatible with iPhone and iPad devices with USB-C connector.

Also compatible with iPhone and iPad devices with Lightning connector using Apple’s Lightning to USB 3 Camera Adapter.
