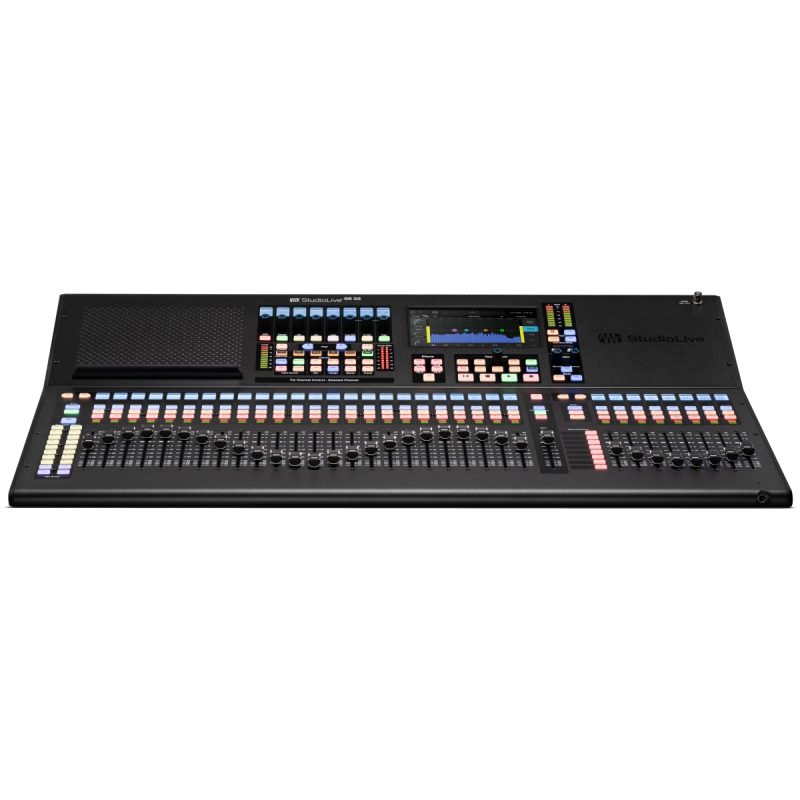

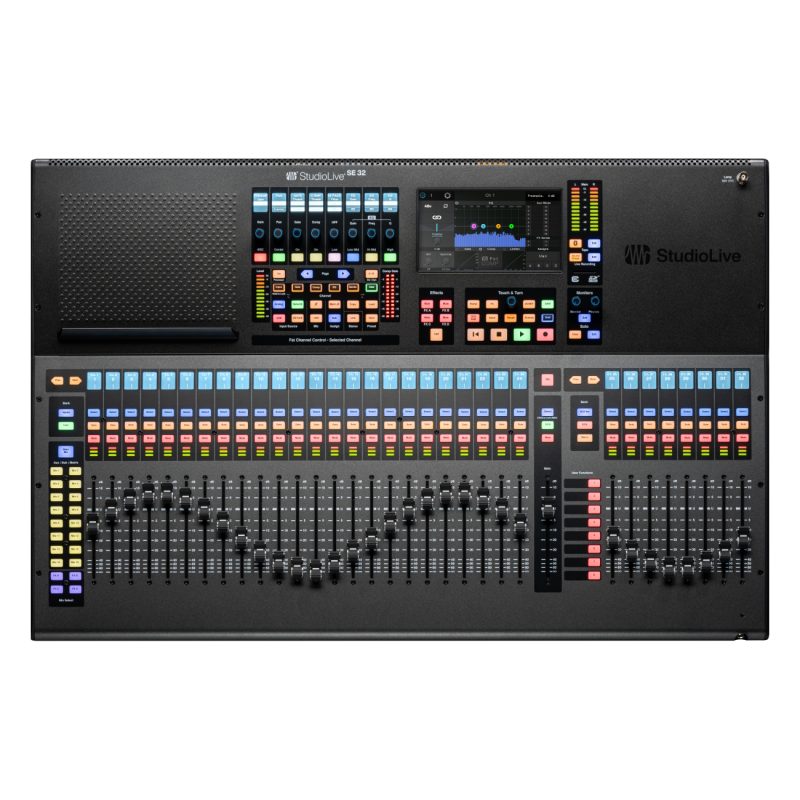

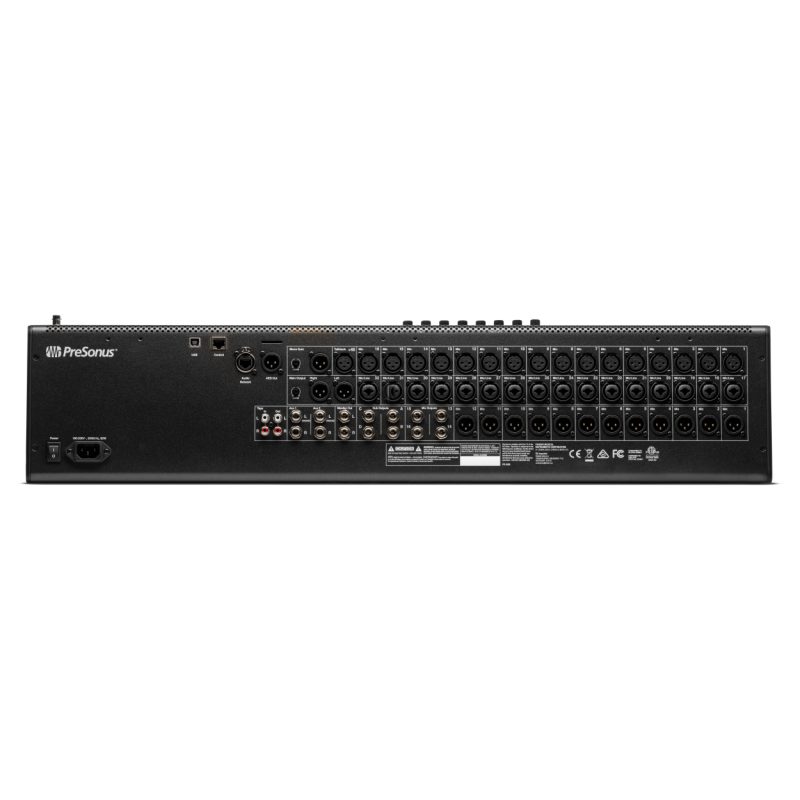

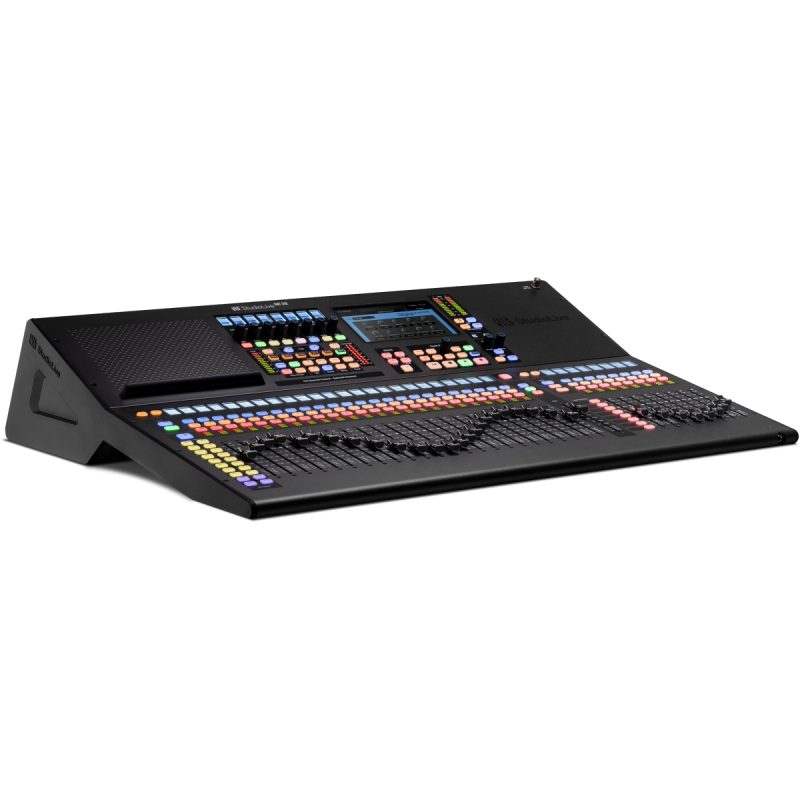

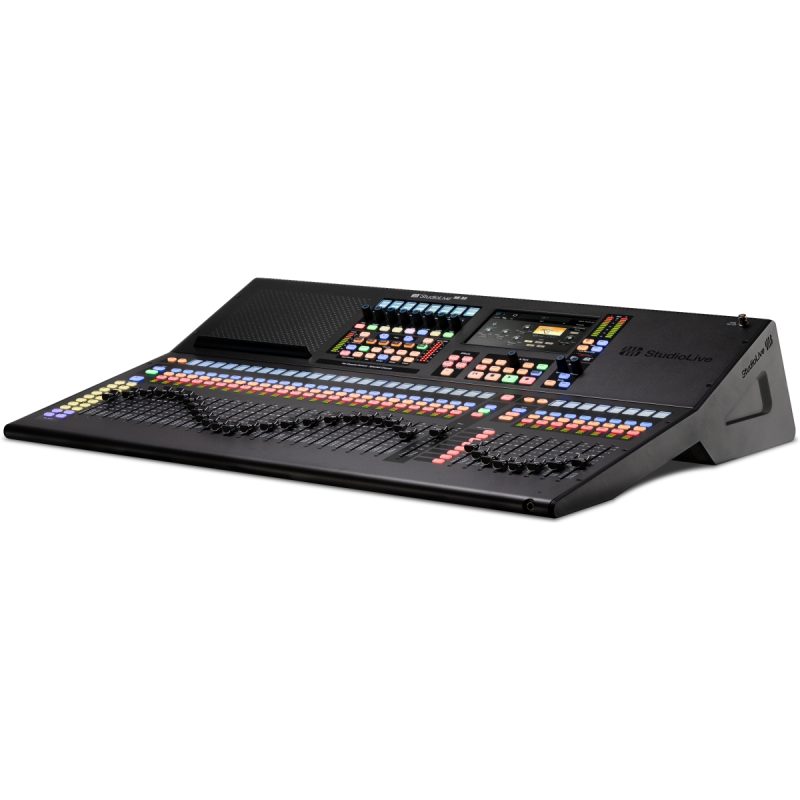

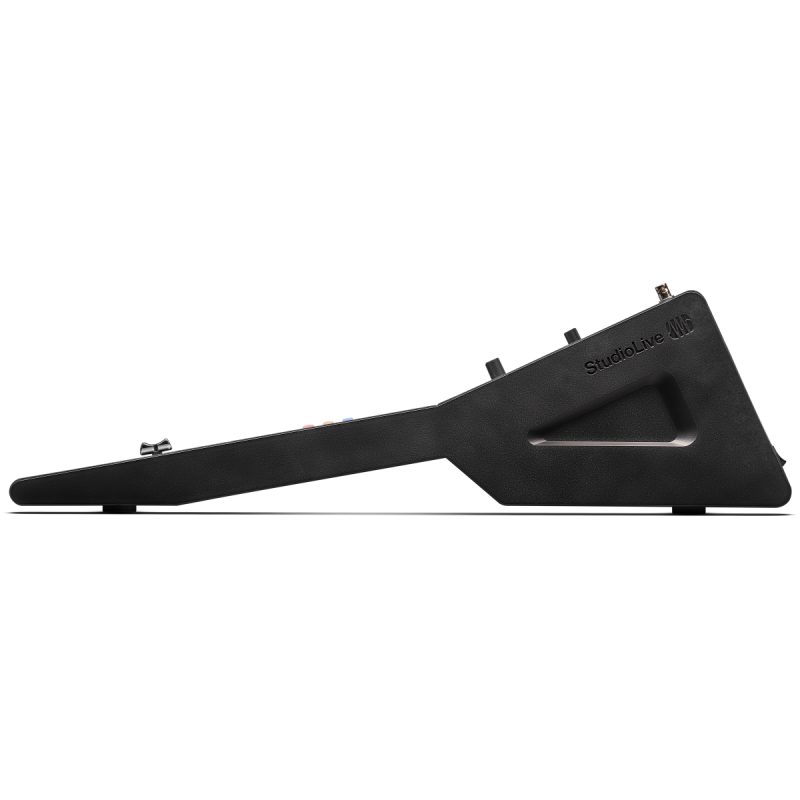

StudioLive SE 32 Digital Console Mixer, Black

Description

Digital Audio Bit Depth – 24
Digital Audio Dynamic Range – ADC Dynamic Range: 115 dB (A-Weighted, 48 kHz), DAC Dynamic Range: 115 dB (A-Weighted, 48 kHz)
Digital Audio Reference Level For Zero dBFS – +18 dBu
Digital Audio Total System Latency – 1.9 ms (local routing, analog in-analog out, all processing active)

Line Input Connection Type – 1/4″ TRS Female, Balanced
Line Inputs Frequency Response – 20-20 kHz (±0.5 dBu at Unity Gain)
Line Inputs Impedance – 10 kΩ
Line Inputs Maximum Level – =+18 dBu
Line Inputs Signal To Noise Ratio – 94 dB (Ref =+4 dB, 20 kHz BW, Unity Gain, A-Weighted)
Line Inputs Total Harmonic Distortion – <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
Microphone Input Connection Type – XLR Female, Balanced
Microphone Preamp Common Mode Rejection Ratio – 65 dB (1 kHz at Unity Gain)
Microphone Preamp Frequency Response – 20-20 kHz (±0.5 dBu at Unity Gain)
Microphone Preamp Gain Control Range – 0 dB to 60 dB (±1 dB)
Microphone Preamp Input Impedance – 1 kΩ
Microphone Preamp Maximum Input Level – =+12 dBu (Unity Gain)
Microphone Preamp Signal To Noise Ratio – 94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
Microphone Preamp Total Harmonic Distortion – <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
Tape Maximum Input Level – =+12 dBu, ±0.5 dBu

Headphone Outputs Connection Type

Headphone Outputs Frequency Response – 20 Hz to 20 kHz, +/-0.5 dB
Headphone Outputs Maximum Output – 100 mW/ch. @ 60Ω load
Headphone Outputs Signal To Noise Ratio – 96 dB, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
Headphone Outputs Total Harmonic Distortion – 0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
Line Outputs Connection Type – 1/4″ TRS Female, Balanced
Line Outputs Maximum Output Level – +18 dBu, ±0.5 dBu
Line Outputs Output Impedance – 100 Ohms
Tape Maximum Output Level – =+18 dBu, ±0.5 dBu
Tape Output Impedance – 100 Ohms
